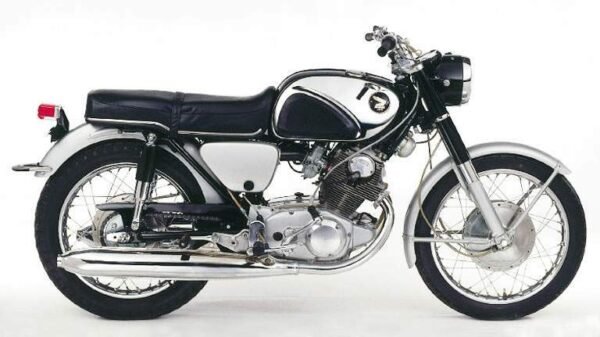

Honda CB77 1964
Specs
Bike Information
|
Bike Name
|
Honda CB77 1964
|
|
CC
|
300
|
|
Bike Type
|
Standard
|
|
Model Year
|
1964
|
|
Brand
|
Honda
|
Engine
|
Engine Type
|
Twin, four-stroke
|
|
Maximum Power
|
27.89 Bhp @ 9000 RPM
|
|
Bore
|
60.0 mm
|
|
Compression Ratio
|
8.1:1
|
|
Fuel Supply
|
Carburettor
|
|
Displacement
|
305
|
|
Stroke
|
54.0 mm
|
|
Starting Method
|
Electric
|
Transmission
|
Transmission Type
|
Manual
|
|
No of Gears
|
5
|
|
Drive Type
|
Chain Drive
|
Mileage & Top Speed
|
Mileage
|
25 Kmpl (Approx)
|
|
Top Speed
|
110 Kmph (Approx)
|
Chassis & Suspension
|
Chassis Type
|
Tubular Steel
|
|
Rear Suspension
|
Twin Shock
|
|
Front Suspension
|
Telescopic
|
Brakes
|
Front Brake Type
|
Drum Brake
|
|
Anti-Lock Braking System (ABS)
|
No
|
|
Rear Brake Type
|
Drum Brake
|
Wheels & Tyres
|
Front Tyre Size
|
2.75-18
|
|
Tyre Type
|
Tubetyre
|
|
Rear Tyre Size
|
3-18
|
|
Wheel Type
|
Spoke
|
Dimensions
|
Weight
|
159.0 kg
|
|
Wheelbase
|
1300
|
|
Fuel Tank Capacity
|
14.00 litres
|
|
Seat Height
|
760 Mm
|
Electricals
|
Battery Type
|
Lead-acid
|
|
Head Light
|
Halogen
|
|
Indicators
|
Halogen
|
|
Battery Voltage
|
12v
|
|
Tail Light
|
Halogen
|
Features
|
Speedometer
|
Analog
|
|
RPM Meter
|
Analog
|
|
Seat Type
|
Single-Seat
|
|
Odometer
|
Analog
|
|
Handle Type
|
Pipe Handle Bar
|
|
Passenger Grab Rail
|
No
|
Our Rating
The overall rating is based on review by our experts
-
Price
8 / 10
-
Build Quality
6 / 10
-
Comfort
5 / 10
-
Control
8 / 10
-
Design
5 / 10
-
Features
5 / 10
-
Performance
7 / 10
-
Braking system
9 / 10
PROS
- The "Giant Killer": Reliably hits 100+ mph, rivaling many 500cc–650cc twins of the era.
- Modern Amenities: Standard electric start and 12V electronics were revolutionary for 1964.
- Racing Heritage: Built with a tubular steel frame and a high-revving 180° parallel-twin engine.
- Proven Durability: One of the first "oil-tight" motorcycles that didn't leak like British competitors.
CONS
- Weak Low-End: Most of the 28 hp is at the top end (9,000 RPM); requires high revs to move.
-
- Drum Brake Limits: While advanced for the time, they can roll backward on hills if not adjusted.
-
- Transmission Issues: The 4-speed gearbox is prone to worn "dogs," which can cause second gear to skip.
-
- Small Stature: At 3/4 scale compared to modern bikes, it can feel cramped for taller riders.
