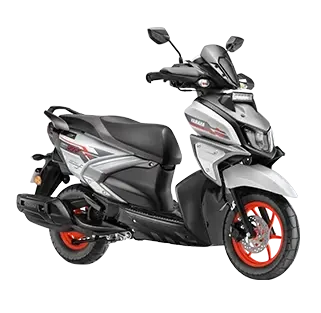

Yamaha Ray ZR
Our Rating
The overall rating is based on review by our experts
-
Price
8 / 10
-
Build Quality
6 / 10
-
Comfort
5 / 10
-
Control
8 / 10
-
Design
5 / 10
-
Features
5 / 10
-
Performance
7 / 10
-
Braking system
9 / 10
PROS
- Sporty & Lightweight – 125cc engine (8.2 HP), 99kg kerb weight
- Fuel-Efficient – Yamaha Blue Core tech (50+ kmpl)
- Hybrid Option – Electric assist for quicker starts (Hybrid model)
- Modern Features – LED lights, Bluetooth connectivity (Y-Connect)
CONS
- Sporty & Lightweight – 125cc engine (8.2 HP), 99kg kerb weight
-
- Fuel-Efficient – Yamaha Blue Core tech (50+ kmpl)
-
- Hybrid Option – Electric assist for quicker starts (Hybrid model)
-
- Modern Features – LED lights, Bluetooth connectivity (Y-Connect)
Specs
Bike Information
|
Bike Name
|
Yamaha Ray ZR
|
|
CC
|
125
|
|
Bike Type
|
Scooter
|
Engine
|
Engine Type
|
4-Stroke Single Cylinder
|
|
Maximum Power
|
8.04 Bhp @ 6500 RPM
|
|
Maximum Torque
|
9.7 NM @ 5000 RPM
|
|
Bore
|
52.4 mm
|
|
Compression Ratio
|
10.2:1
|
|
Fuel Supply
|
Fuel Injection
|
|
Engine Cooling
|
Air Cooled
|
|
Displacement
|
125cc
|
|
Stroke
|
57.9 mm
|
|
No of Cylinders
|
1
|
|
Starting Method
|
Kick & Electric
|
Transmission
|
Transmission Type
|
Auto
|
|
Clutch Type
|
Automatic Clutch
|
Mileage & Top Speed
|
Mileage
|
65 Kmpl (Approx)
|
|
Top Speed
|
90 Kmph (Approx)
|
Chassis & Suspension
|
Rear Suspension
|
Unit swing
|
|
Front Suspension
|
Telescopic Forks
|
Brakes
|
Front Brake Type
|
Single Disc
|
|
Anti-Lock Braking System (ABS)
|
No
|
|
Rear Brake Type
|
Drum Brake
|
|
Braking System
|
Single Disc
|
Wheels & Tyres
|
Front Tyre Size
|
90/90-12
|
|
Tyre Type
|
Tubeless
|
|
Rear Tyre Size
|
110/90-10
|
|
Wheel Type
|
Alloy
|
Dimensions
|
Overall Length
|
1,880mm
|
|
Height
|
1,190mm
|
|
Weight
|
99kg
|
|
Wheelbase
|
1,280mm
|
|
Overall Width
|
685mm
|
|
Ground Clearance
|
145mm
|
|
Fuel Tank Capacity
|
5.2L
|
|
Seat Height
|
785mm
|
Electricals
|
Head Light
|
12V 35/35W (Halogen)
|
|
Battery Voltage
|
LED
|
|
Tail Light
|
Halogen
|
Features
|
Seat Type
|
Single-Seat
|
|
Engine Kill Switch
|
No
|
|
Handle Type
|
Conventional
|
|
Passenger Grab Rail
|
Yes
|
